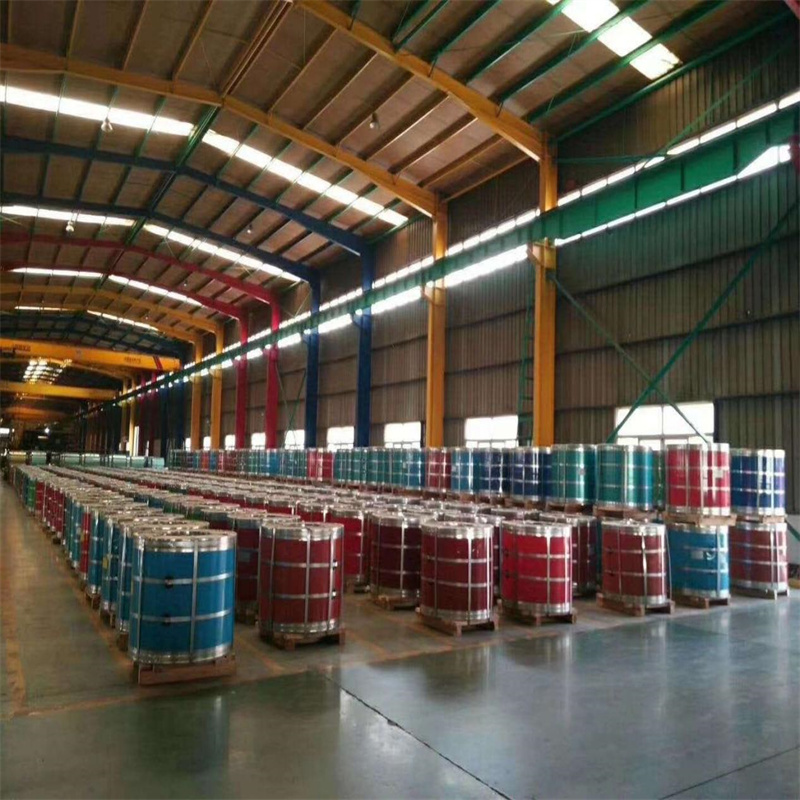

DX51D GI/PPGL/PPGL COIL FACTORY
1.Specification:
| Prepainted Steel Coil / Sheet | |
| Standard | ISO,JIS,AS EN,ASTM |
| Grade | Q195 Q235 Q345 |
| SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 | |
| SGHC SGH340 SGH400 SGH440 SGH490 SGH540 | |
| DX51D DX52D DX53D DX54D DX55D DX56D DX57D | |
| S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD | |
| SS230 SS250 SS275 | |
| Width | 600mm to 1500mm |
| Thickness | 0.125mm to 4.0mm |
| Zinc coating | 40 to275GSM |
| Substrate | Cold rolled Substrate / Hot rolled Substrate |
| Color | Ral Color Systerm or as per buyer's color sample |
| Surface treatment | Chromated and oiled, and ant-ifinger |
| Hardness | Softy , half hard and hard quality |
| Coil weight | 3 tons to 8 tons |
| Coil ID | 508mm or 610mm |
2.Available Size
| Name | Thickness | Width |
| Pre-painted Hot-dip Galvanized Steel Coil | 0.2~1.5mm | 600~1250mm |
| Pre-painted 5% Al-Zn Coated Steel Coil | 0.2~1.5mm | 600~1250mm |
| Pre-painted 55% Al-Zn Coated Steel Coil | 0.2~1.38mm | 600~1250mm |
| Product Type | Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI) | Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF) | Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL) | Pre-Painted Embossed Steel Coil |
| Coating Types | 1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF) |
PVC Plastisol | ||
| Specifications | CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010) |
JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010) |
||
| Coating Types | Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm |
Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm |
||
| Surface Treatment | Protective film can be applied Metal Embossed Cedar wood Stucco Leather |
PVC Embossed Leather Lichee |
||
| Remarks | 1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only. |
|||
