The production Process of Stainless Steel Welded Pipes And Tubes

Stainless steel Pipe/ Tube Tubing Manufacturer, Stockholder, SS Pipe Exporter In CHINA.



Stainless Steel Welded Tubes and Pipes Division has two welding lines for manufacturing welded tubes and pipes. Stainless Steel Welded Tubes/Pipes are manufactured on Continuous Tube Mill using Multitorch TIG (Tungsten Inert Gas) welding process. Prime quality stainless steel strips having trimmed edges are fed to the tubes mill after thorough quality checks. Strip passes through various sets of rollers fitted in mill as per the required size. This strip is gradually converted in to a tabular shape. The Edges are welded using TIG welding process by welding unit fitted on the mills the inside weld bid is instantaneously removed by online bid removing machine. Rolled Tubes/Pipes thus produced are cut to required length. This is further subjected to heat treatment (annealing) after proper cleaning to remove the stresses included while formation as well as welding and to restore the original grain structure.

”"

Heat Treatment is carried out on the continuous roller hearth furnace fitted with temperature controller and recorder. After heat treatment Tubes/Pipes are straightened and subjected to pickling to remove scale on the surfaces. In case the final size cannot be produced from the mill directly, the same is produced by cold drawing operation. To make the tube/pipe suitable for cold drawing, it is coated with oxalate & shop solution which acts as a lubricant and reduces friction while drawing. In the drawing operation, the tube/pipe is drawn over the draw bench using precision tooling i.e. Dies Plugs as per the requirements of finished size. The drawn tube/pipe undergoes heat treatment, pickling and other operations as specified above after surface cleaning.



Finished pipes/tubes are marked with computerized ink Jet Marking Machine. Each pipe/tube is marked as ‘Manufacturing Standard’. Grade of Material, Size, Heat No., Stamp of third party inspection agency to Correlate with our Test Certificate. Finished tubes/pipes thus produced undergo various testing and quality checks followed by proper packing and dispatch.

”"

Specification

Outside DiameterNPS Outside Diameter (mm) Nominal Wall Thickness (mm)
ASME B36.19M ASME B36.10M
SCH 5S SCH 10S SCH 40S SCH 80S SCH 5 SCH 10 SCH 20 STD XS
 1/4 13.72 1.65 2.24 3.02 1.65 2.24 3.02
 3/8 17.15 1.65 2.31 3.2 1.65 2.31 3.2
 1/2 21.34 1.65 2.11 2.77 3.73 1.65 2.11 2.77 3.73
 3/4 26.67 1.65 2.11 2.87 3.91 1.65 2.11 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55 1.65 2.77 3.38 4.55
1 1/4 42.16 1.65 2.77 3.56 4.85 1.65 2.77 3.56 4.85
1 1/2 48.26 1.65 2.77 3.68 5.08 1.65 2.77 3.68 5.08
2 60.33 1.65 2.77 3.91 5.54 1.65 2.77 3.91 5.54
2 1/2 73.03 2.11 3.05 5.16 7.01 2.11 3.05 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62 2.11 3.05 5.49 7.62
3 1/2 101.6 2.11 3.05 5.74 8.08 2.11 3.05 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56 2.11 3.05 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53 2.77 3.4 6.55 9.53
6 168.28 2.77 3.4 7.11 10.97 2.77 3.4 7.11 10.97
8 219.08 2.77 3.76 8.18 12.7 2.77 3.76 6.35 8.18 12.7
10 273.05 3.4 4.19 9.27 12.7 3.4 4.19 6.35 9.27 12.7
12 323.85 3.96 4.57 9.53 12.7 3.96 4.57 6.35 9.53 12.7
14 355.6 3.96 4.78 9.53 12.7 3.96 6.35 7.92 9.53 12.7
16 406.4 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
18 457.2 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
20 508 4.78 5.54 9.53 12.7 4.78 6.35 9.53 9.53 12.7
22 558.8 4.78 5.54 4.78 6.35 9.53 9.53 12.7
24 609.6 5.54 6.35 9.53 12.7 5.54 6.35 9.53 9.53 12.7
26 660.4 7.92 12.7 9.53 12.7
28 711.2 7.92 12.7 9.53 12.7
30 762 6.35 7.92 6.35 7.92 12.7 9.53 12.7

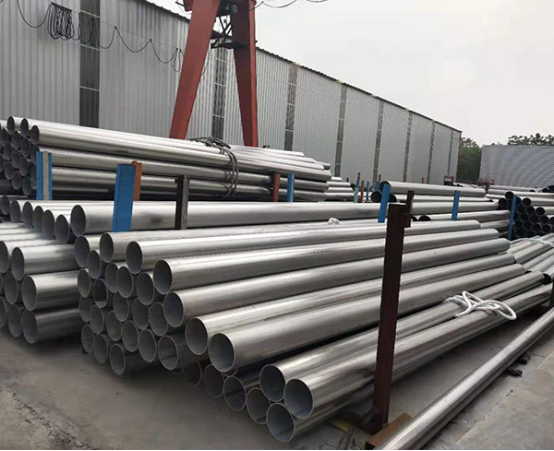

JINBAICHENG METAL MATERIALS LTD. is Manufacturer & Exporter of Stainless Steel Welded Pipe and Tubes.

We have customer from German, Thane, Mexico, Turkey, Pakistan,Oman, Israel, Egypt, Arab,Vietnam, Myanmar.
